Fieldsight® GW

Mapping and tracking device
Applies:
  • Cable trenching
  • Maintenance trains

Fieldsight® GW allows for cable laying and simultaneous creation of as-built documentation. It also supports machine positioning, making it ideal for tracking and managing maintenance trains and other equipment.

Starting from 650€/month
Book a demo

GW is perfect for

Cable trenching

‏

‎

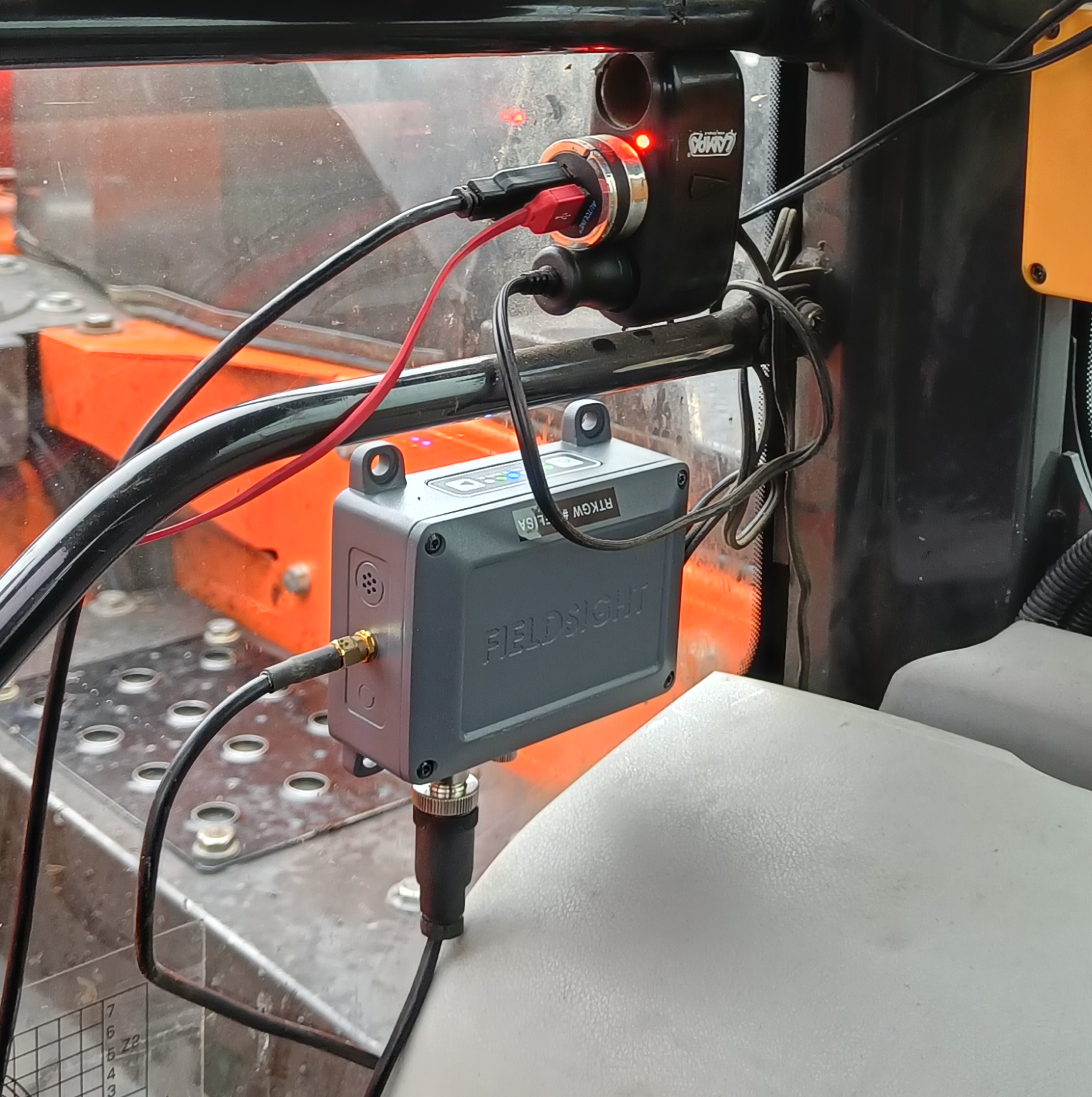

The device is installed in the cockpit, with the antenna mounted on the excavator bucket. This setup allows you to create as-built documentation instantly and transmit it to all stakeholders in real time, significantly saving both time and costs



‏

‎‎

Centimeter positioning for machines

‏





You can easily track machine locations in real time by installing the GW.



‏

‎

Key features of GW

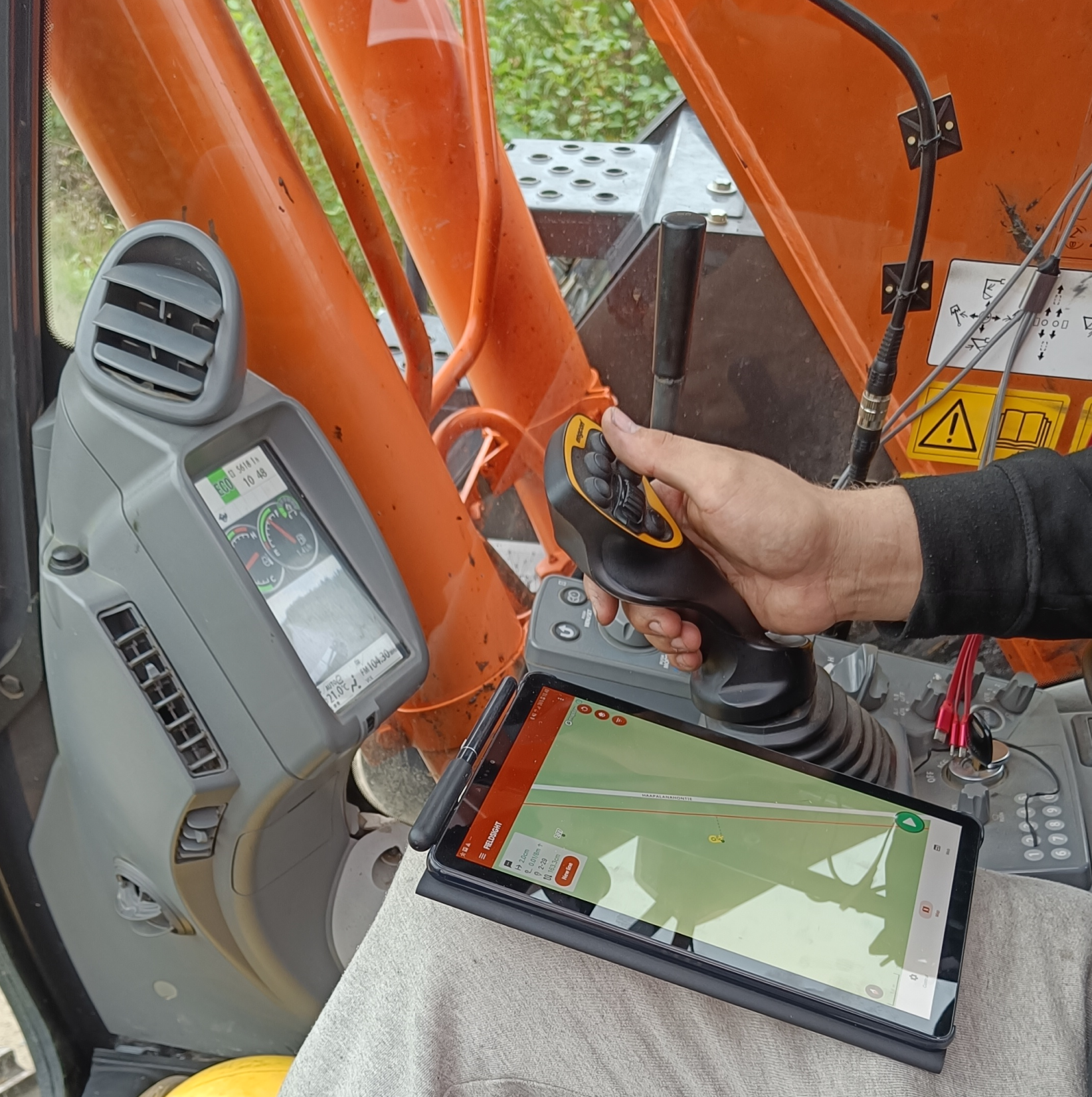

OPERATE FULLY FROM THE COCKPIT

Real-time positioning

Operate using a joystick

GW comes with the Fieldsight® Survey app and GIS software

Get your questions answered




    Which product(s) are you intrested in?*

    * required field.
    We respect your privacy and do not tolerate spam and will never sell, rent, lease or give away your information.

    Product information of GW

    Features

    Processor: Arm Cortex M4F CPU, Arm Cortex A7, Cryptographic co-processor with secure key store

    Memory: 256KB RAM, 1MB Flash, 4MB EEPROM. Support for 4GB of external flash

    Contact:

    • 2G-4G – LTE, UMTS/HSPA+;
    • GSM, GPRS, EDGE;
    • Wi-Fi 802.11b/g/n, Ethernet 100 mb/s;
    • Bluetooth 5 Long-range, LE,
    • CLASSIC, MESH GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS);
    • Support for 184-channel RTK GNSS;
    • Support for microSIM and eSIM

    Sensors:

    • 9-axis motion detection unit (1kHz);
    • 3-axis accelerometer;
    • (1.6kHZ, 1µA low power, 10000g);
    • Temperature, humidity and air pressure;
    • Microphone

    I/O:

    • 1 x USB 2.0 for data and charging;
    • 4 x input relay, activated relay to ground;
    • 1 x output relay (galvanic isolation);
    • 1 x analogue i/o 4-20mA;
    • 1 x digital output;
    • 1 x RS-485;
    • 2 x M12 connectors (power and ethernet);
    • 3 x SMA, external antenna connectors

    Mechanical

    Product dimensions: 111x102x45 mm

    Printed from: 400 g

    Operating temperature: from -40 to +80°C

    Battery life and uptime: 1

    • 2-48V DC, min. 12 V / 1A input via M12 interface,
    • 5V USB / 10W / 2A via M12 interface,
    • Support for Lithium-ion 3000 mAh battery

    IP protection class: IP 67
